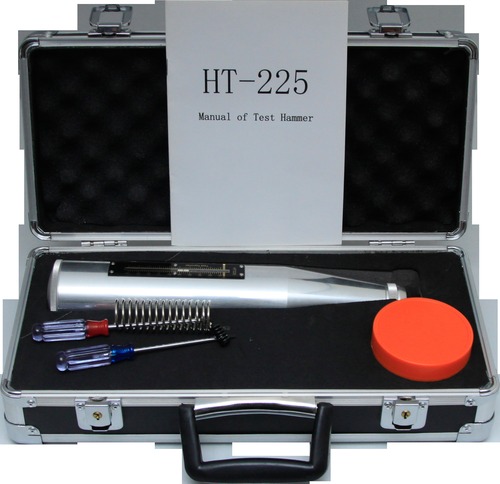

Concrete Test Hammer

Concrete Test Hammer
Concrete Test Hammer
Product Code : 225N
Product Description

The concrete test hammer is an instrument which is easy to use, for quick and approximate measurement of the resistance to pressure of manufactured concrete products. The principles on which it works are based on the rebound impact of a hammer on a piston which rests against the surface of the concrete products. The Greater the resistance of the concrete, greater is the rebounded impact. By reading this rebound impact on a scale and relating it to curves or table on graphs supplied with the instrument, the resistance to compression in MPA or PSI can be found.

Specifications:
test range: 10~60 Mpa
impact energy: 2.207J (0.225kgf.m)
impact stroke: 75mm
friction of slider: 0.5~0.8N
spherical radius of impact pole: 25+/-1mm
calibration value on test anvil: 80+/-2
dimension: 278*D54mm
weight: 1kg


TIANJIN JEWEL ELECTRONIC INSTRUMENT CO., LTD.
